Nvidia-Jetson-Orin-Nano-EAC-30N1
Nvidia-Jetson-Orin-Nano-EAC-30N1
SGD 1,350

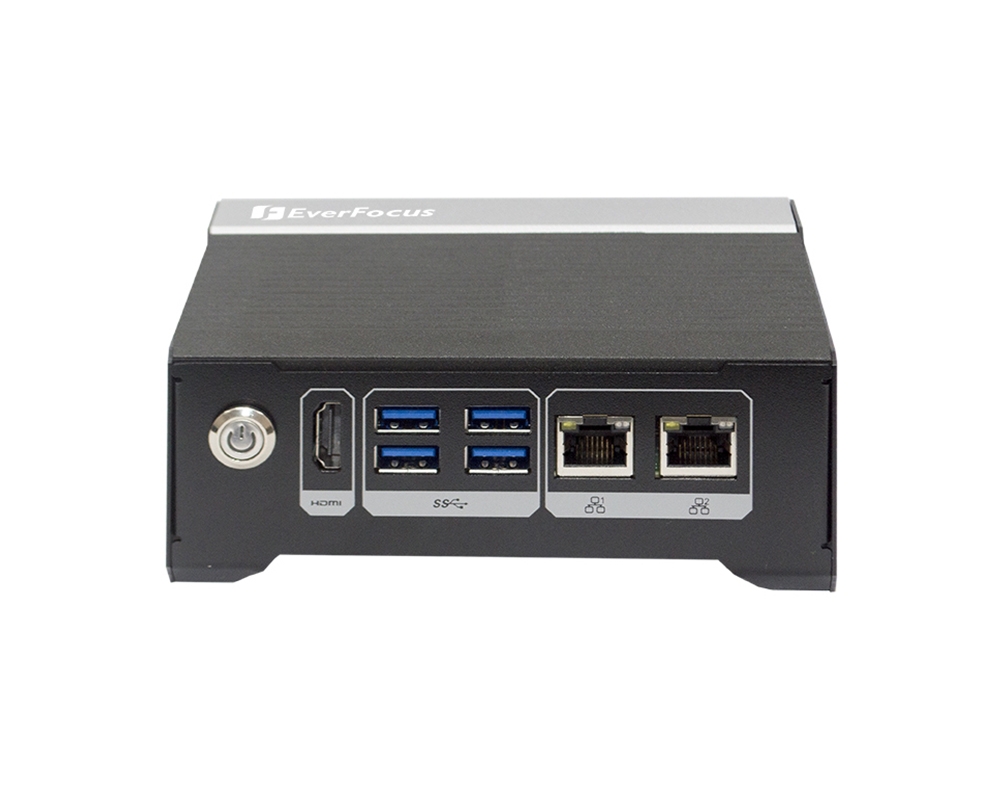

NVIDIA® Jetson Orin™ Nano AI Box
• Powered by NVIDIA® Jetson Orin™ Nano
• Support Jetson Orin Nano Super Mode
• Onboard 8GB 128-bit LPDDR5 / 128GB SSD
• Multiple I/O interface connections for data collection Gigabit LAN, USB 3.1, Serial Port, CAN-FD
• Wide operating temperature range -20˚C to 60˚C
• Support Jetson Orin Nano Super Mode
• Onboard 8GB 128-bit LPDDR5 / 128GB SSD
• Multiple I/O interface connections for data collection Gigabit LAN, USB 3.1, Serial Port, CAN-FD
• Wide operating temperature range -20˚C to 60˚C
| Model name: | EAC-30N1 |
| Processor: | NVIDIA® Jetson Orin™ Nano 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| Memory / Storage: | Onboard 8GB 128-bit LPDDR5 / 128GB SSD |
| Ethernet: | Gigabit Ethernet RJ45 x1, Fast Ethernet RJ45x1 |
| Expansion Slot: | 1 x SIM card slot, 1 x Micro SD slot |
| Power Supply: | 9 to 36 VDC, Max. 15W (with Fan) |
| Dimensions (W x D x H): | 136mm x 110mm x 57mm |
| Gross Weight: | 0.9 kg |
| Operating Temperature: | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temperature: | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Storage Humidity: | 10% ~ 95% relative humidity, non-condensing |
| Certification: | CE, FCC |
