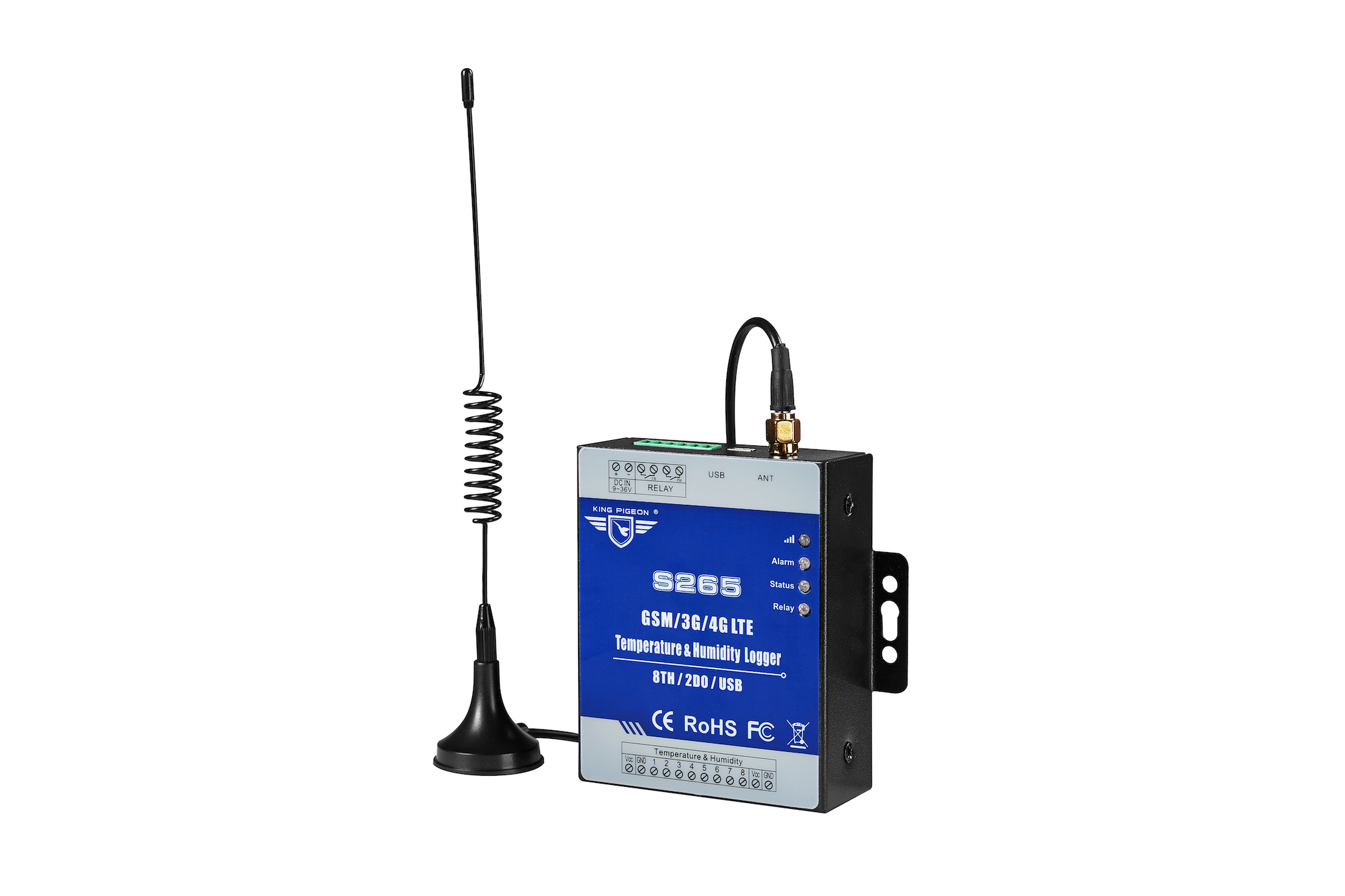

Temp & Humidity Monitoring S265

Temp & Humidity Monitoring S265

SGD 308

  • Rated Voltage: DC 12V/1A Range 9~36VDC;
  • 8 Temperature&Humidity; 2 Relay, 7A@125VAC  5A@125VAC  20A@14VDC;
  • Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
  • High/Low Alert via SMS/Call/GPRS;
  • In-built internal clock, support 11 actions on schedule at pre-set time;
  • Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;
  • Up to 10 user’s phone number to receive alarm and daily report SMS/Call;
  • Size: 70*88*30mm.

GSM/3G/4G LTE S265 Data Loggers are special for remote monitoring the onsite temperature and humidity. Not only for monitoring Temperature & Humidity in real-time, also support high/low .SMS/Call alert to max 10 user phone numbers.

The Data Logger with large memory that can save 200000 events. Moreover,It provides 2 Relay outputs for automatically switch ON/OFF devices when Temperature & Humidity exceed high/low value and remote switch ON/OFF Device by SMS or GPRS/3G/4G. It has been designed as a cost effective, low power, self contained data logger. It has 8 temperature & Humidity sensor inputs with embedded GSM/GPRS/3G/4G module to provide an all in one instrument for data logging, Remote data acquisition, alarm and control.

Specifications:

Item

Reference Scope

DC Power Supply

 Standard Adapter: DC 12V/1A , Range 9~36VDC

Power Consumption

 Standby:12V/70mA ,WorkingMax.:12V/300mA

GSM/3G Frequency

 2G: 850/900/1800/1900Mhz

 3G version Optional: (UMTS/HSDPA)

 W:900/2100@UMTS 900/1800@GSM;

 C:850/1900@UMTS 850/900/1800/1900@GSM;

 T:850/2100@UMTS 850/900/1800/1900@GSM , 4G LTE

SIM Interface

 Supporting 3V SIM Card

External Antenna

 SMA Antenna interface, 50 Ohm

Serial Interfaces

 1 USB Port

Temp.&Hum Inputs

 8 channel (AM230x Temperature&Humidity input)

Relay Outputs

 2 Relay Outputs, 7A@125VAC  5A@125VAC  20A@14VDC

Memory Capacity

 16MB for 200000 record.

Backup Battery

 3.7V 900mAH

Exterior Dimension

 70*88*30mm

Installation

 35mm standard DIN rail(Optional), Wall mount (Default)

Net Weight

 500g



Features:

Ø  Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;

Ø  3G UMTS/HSDPA/4G Modules are optional.;

Ø  32 bit MCU, reliable performance with in-built watchdog;

Ø  Support temperature & humidity monitoring remotely in real-time;

Ø  Support 8 channel temperature&humidity input interface(AM230x series T/H sensors);

Ø  Support  2 relay outputs,7A@125VAC   5A@125VAC  20A@14VDC;

Ø  High/Low Alert via SMS/Call/GPRS;

Ø  Supports 1 DNS or IP address as server;

Ø  Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;

Ø  Automatically resend the data while communication failure, GPRS failure will alert by SMS text;

Ø  Supports remotely restart the device, and configure it by SMS commands remotely;

Ø  Up to 10 user's phone number to receive alarm and daily report SMS/Call;

Ø  Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;

Ø  In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;

Ø  In-built internal clock, support 11 actions on schedule at pre-set time;

Ø  Internal 16MB memory, logs more than 200000 records;

Ø  Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;

Ø  Support Android/IOS APP, easily & friendly for use/config.

Ø  Support remote upgrade the firmware via PC.

Ø  Can be operated from anywhere, no distance limitation;

Ø  Secure - Using caller ID and password for identification, unknown callers are ignored;

Additional information

Model

4G (E version)
