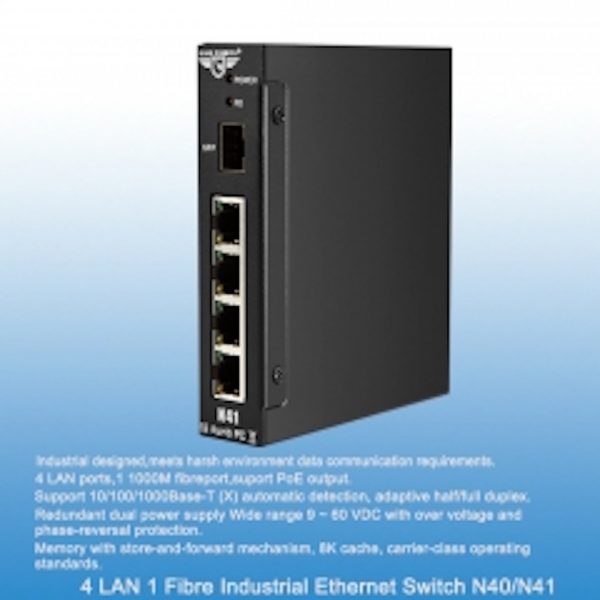

Rugged Industrial Ethernet Switch N40

Rugged Industrial Ethernet Switch N40

SGD 181

  • 4 10M/100M adaptive LAN ports;
  • Support dual power supply redundant input;
  • Support POE power supply (optional);
  • Rated Voltage: 9~60VDC.

The 4LAN port industrial Ethernet switch N40 is specially designed for industrial communication, which meets the harsh industrial environment, is stable and reliable, and is used to realize the industrial Ethernet equipment data exchange in the industrial field. Provide a safe and reliable solution for the establishment of fast and stable network terminal access networks in industrial applications such as factory automation, intelligent manufacturing, intelligent transportation, and video surveillance. 4LAN port industrial Ethernet switch N40 supports 4 LAN ports, which can be plug and play.

4LAN port industrial Ethernet switch N40 adopts low power consumption and fanless design to ensure no noise interference. At the same time, it supports -40-85 ℃ working temperature and good EMC electromagnetic interference compatibility performance to ensure stable work in harsh working environments.

4LAN port industrial Ethernet switch N40 adopts dual power supply redundant design to support input overload and reverse connection protection to ensure the stability and reliability of the industrial network.

4LAN port industrial Ethernet switch N40 supports PoE function, which simplifies industrial field wiring and reduces various failure probability caused by wiring.

Specifications:

Item

Parameter

Description

Standard

Protocol Standard

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X)

IEEE 802.3x Flow Control

IEEE 802.3z 1000Base-T

IEEE 802.3af PoE(12.95W)

IEEE 802.3at PoE(30W)

Port

SFP

1000Base-X port,SFP slot

RJ45 port

10/100/1000Base-T(X) port,MDI/MDI-X automatically adapt

POE pin

V+,V+,V-,V- corresponding pin 1,2,3,6

Transmission Distance

Cat 5e

100m

Single Mode Fiber

1310nm: 20/40/60Km

1550nm: 80/100/120Km

Multimode optical fiber

1310nm: 2Km

Transmission Performance

Transmission Rate

1.48810Mpps

Transmission Mode

Store-and-forward mechanism

MAC cache

8K

Power requirement

Voltage Input

9~60VDC,redundant dual power input

Current Input

[email protected]

Overload protection

Yes

Terminal Block

1 pluggable 4-pin

Reverse Polarity Protection

Yes

Characteristics

IP Rating

IP30

Dimension

125x105x28mm

Weight

410g

Environment

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-40℃ ~ 105℃

Relative Humidity

5%-95%(Non-condensing)

Industrial Standards

EMI

EN550222006/A12007

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

Features:

  • Support full duplex or half duplex mode with automatic negotiation ability.
  • 10/100M Base-T(X) at the same time automatically adapt, full/half duplex MDI/MDI-X automatically adapt, no manual adjustment.
  • Surge protection,support 4KV common mode, 1KV differential mode surge shock.
  • Inside take a store-and-forward mechanism, cache 8 K.
  • Support industrial grade IP30 protection level,can work in -40-85℃ environment.
  • Redundant dual power supply,working power supply 9-60VDC.
