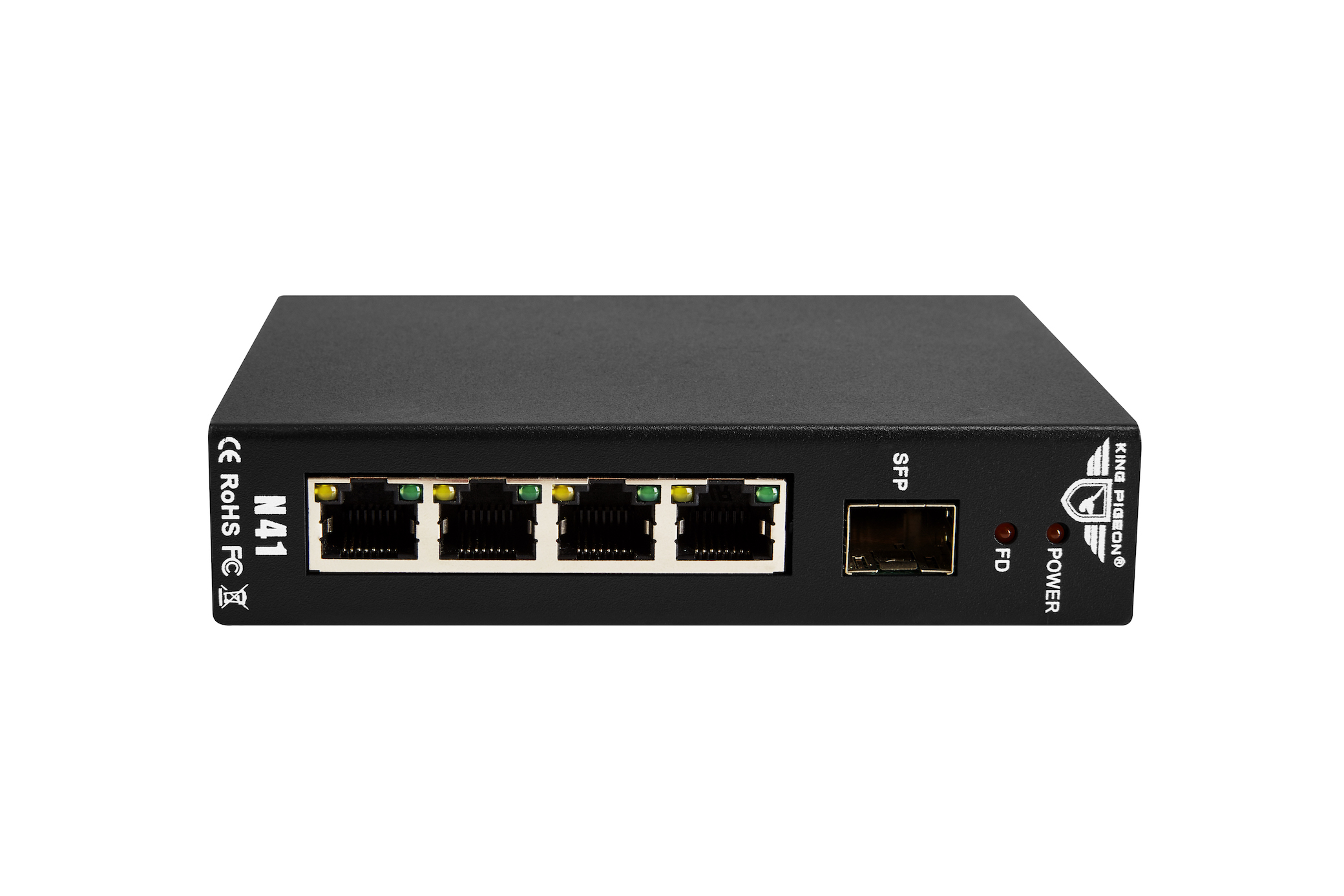

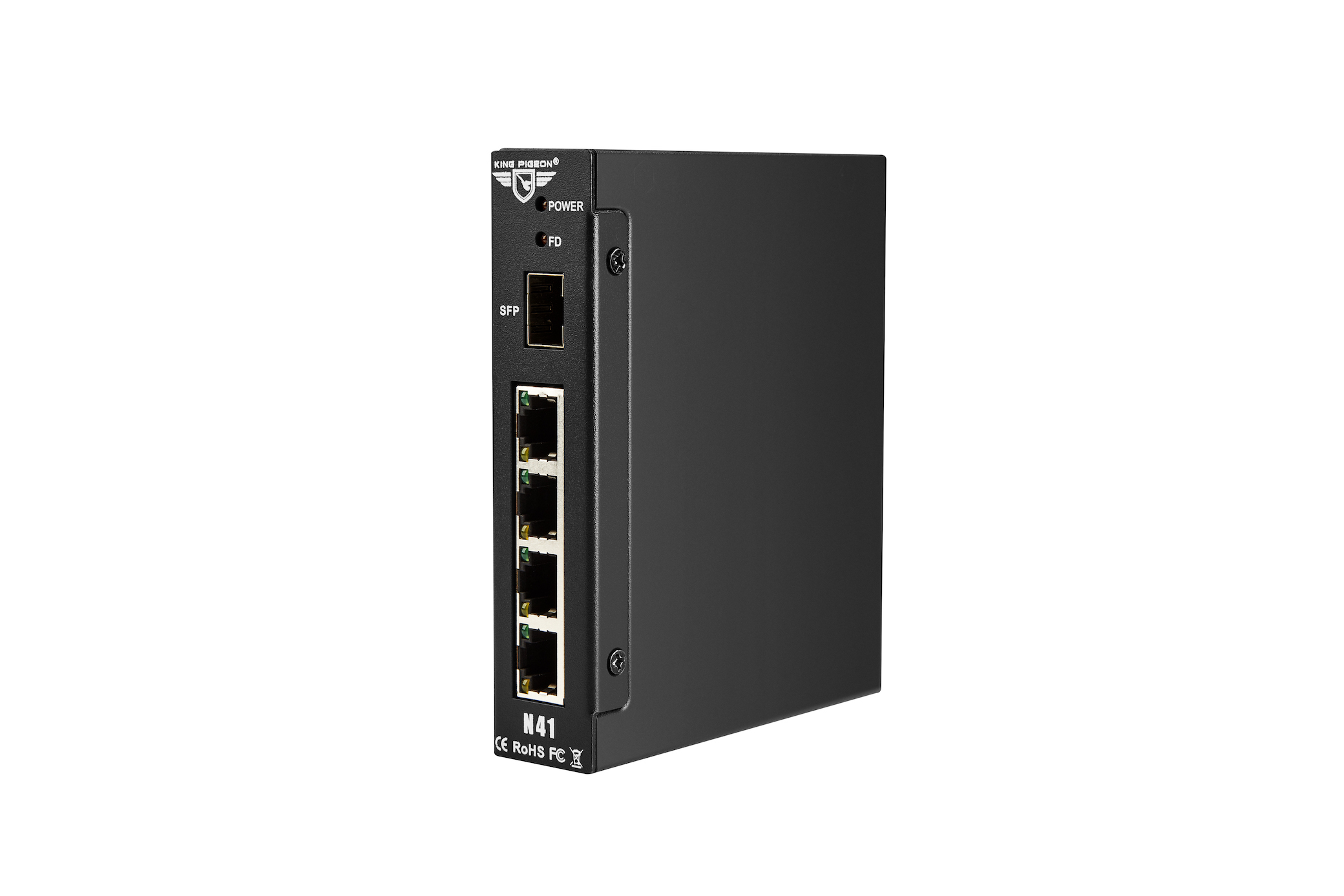

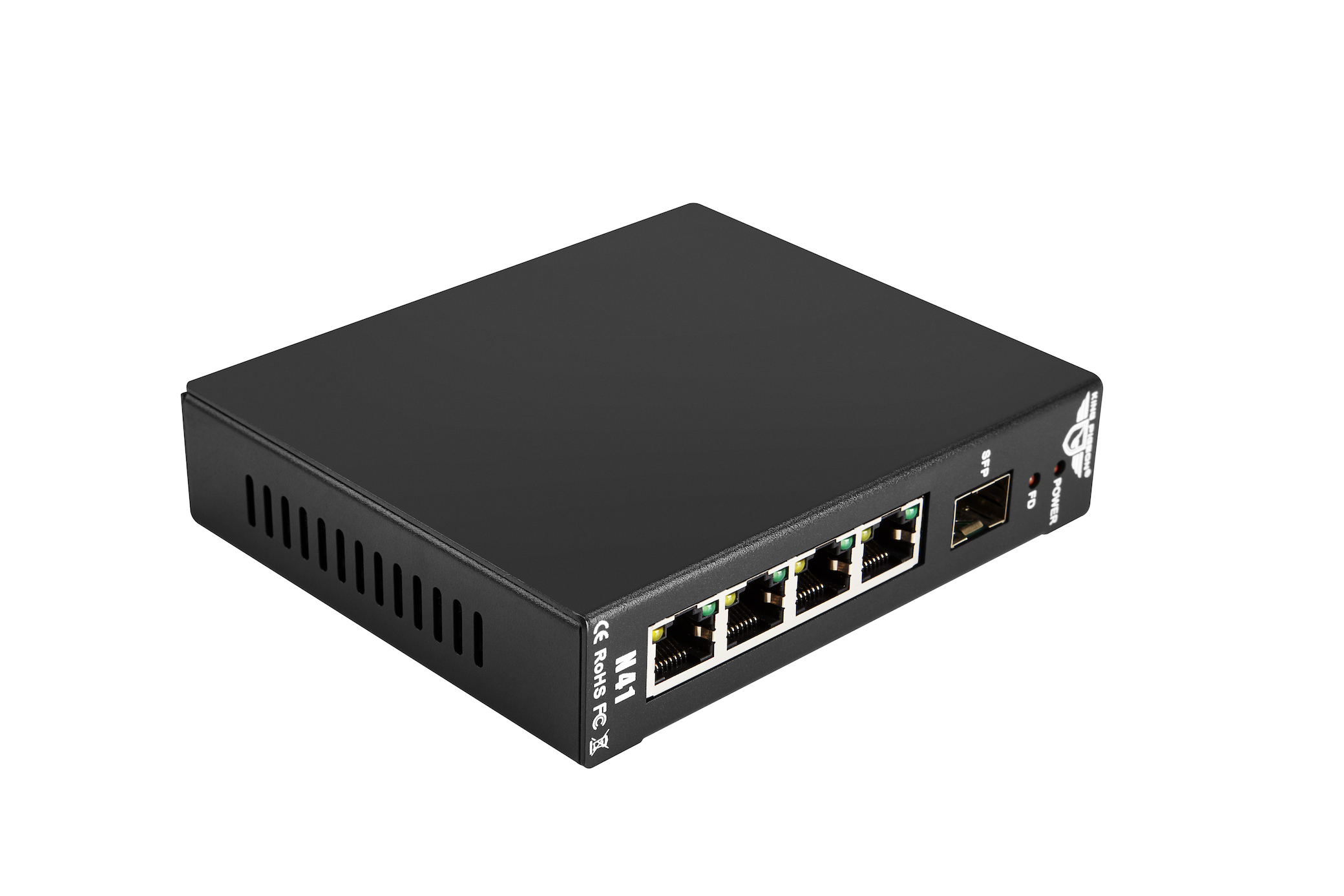

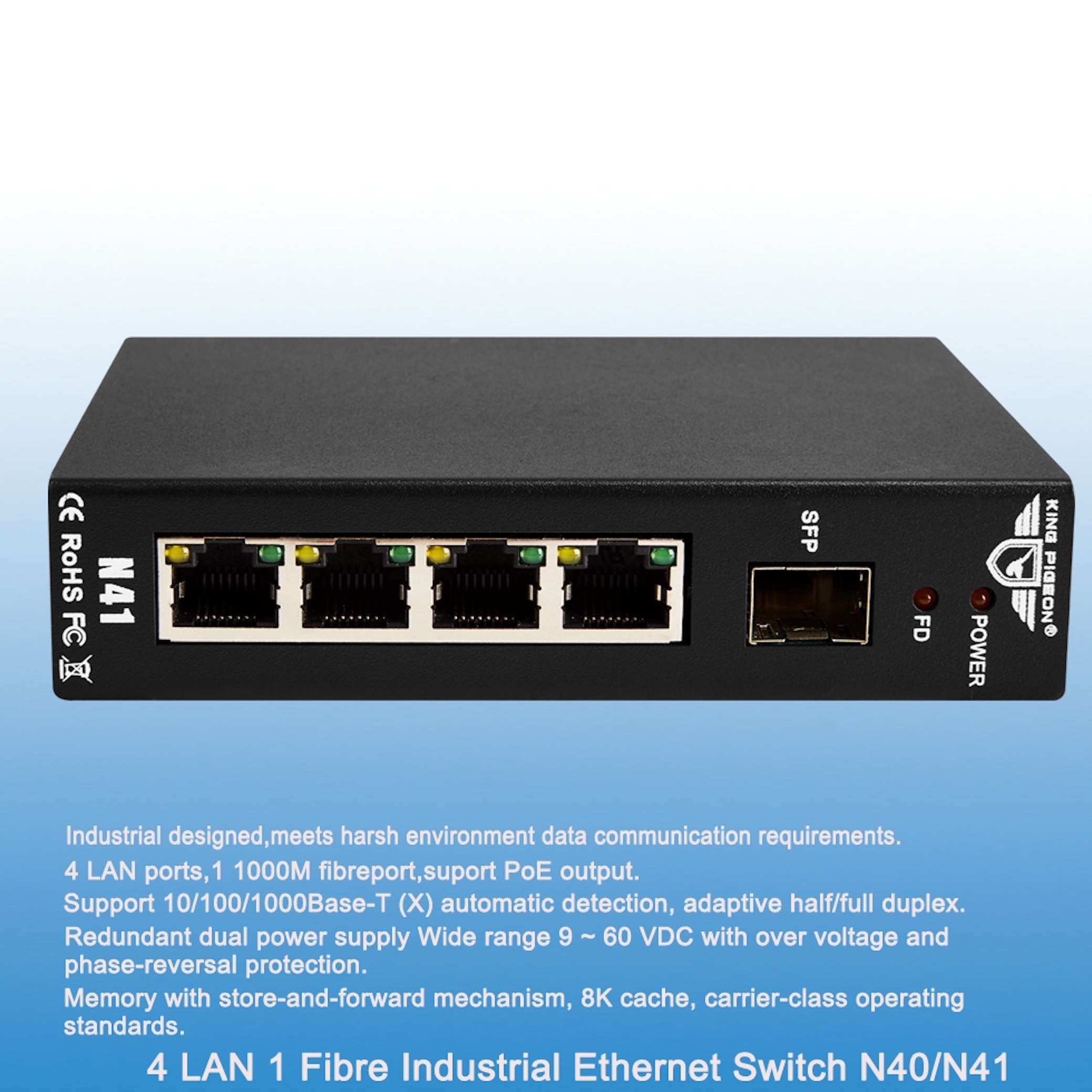

Rugged Industrial Ethernet Switch N41

Rugged Industrial Ethernet Switch N41

SGD 225

  • 4 10M/100M adaptive LAN ports;
  • 1 way 1000Base-X optical port;
  • Support dual power supply redundant input;
  • Support POE power supply (optional);
  • Rated Voltage: 9~60VDC.

4 LAN ports and 1 optical port industrial Ethernet switch N41 are specially designed for industrial communication, which meets the harsh industrial environment, is stable and reliable, and is used to implement industrial Ethernet equipment data exchange at industrial sites. Provide a safe and reliable solution for the establishment of fast and stable network terminal access networks in industrial applications such as factory automation, intelligent manufacturing, intelligent transportation, and video surveillance.

 4 electrical ports and 1 optical port Industrial Ethernet Switch N41 supports 4 LAN ports, compatible with 100M / Gigabit photoelectric combination, and supports 1 Gigabit optical port, which can be plug and play.

4 electrical ports and 1 optical port industrial Ethernet switch N41 adopts low power consumption and fanless design to ensure no noise interference. At the same time, it supports -40-85 ° C operating temperature and good EMC electromagnetic interference compatibility performance, which guarantees the harsh working environment. Stay stable.

4 electrical ports and 1 optical port industrial Ethernet switch N41 adopts dual power supply redundancy design to support input overload and reverse connection protection to ensure the stability and reliability of the industrial network.

4 electrical ports 1 optical port industrial Ethernet switch N41 supports PoE function, which simplifies industrial field wiring and reduces various failure probabilities caused by wiring

Specifications:

Item

Parameter

Description

Standard

Protocol Standard

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X)

IEEE 802.3x Flow Control

IEEE 802.3z 1000Base-T

IEEE 802.3af PoE(12.95W)

IEEE 802.3at PoE(30W)

Port

SFP

1000Base-X port,SFP slot

RJ45 port

10/100/1000Base-T(X) port,MDI/MDI-X automatically adapt

POE pin

V+,V+,V-,V- corresponding pin 1,2,3,6

Transmission Distance

Cat 5e

100m

Single Mode Fiber

1310nm: 20/40/60Km

1550nm: 80/100/120Km

Multimode optical fiber

1310nm: 2Km

Transmission Performance

Transmission Rate

1.48810Mpps

Transmission Mode

Store-and-forward mechanism

MAC cache

8K

Power requirement

Voltage Input

9~60VDC,redundant dual power input

Current Input

40mA@12V

Overload protection

Yes

Terminal Block

1 pluggable 4-pin

Reverse Polarity Protection

Yes

Characteristics

IP Rating

IP30

Dimension

125x105x28mm

Weight

410g

Environment

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-40℃ ~ 105℃

Relative Humidity

5%-95%(Non-condensing)

Industrial Standards

EMI

EN550222006/A12007

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8



Features:

  • Support full duplex or half duplex mode with automatic negotiation ability.
  • 10/100M Base-T(X) at the same time automatically adapt, full/half duplex MDI/MDI-X automatically adapt, no manual adjustment.
  • Surge protection,support 4KV common mode, 1KV differential mode surge shock.
  • Inside take a store-and-forward mechanism, cache 8 K.
  • Support industrial grade IP30 protection level,can work in -40-85℃ environment.
  • Redundant dual power supply,working power supply 9-60VDC.
